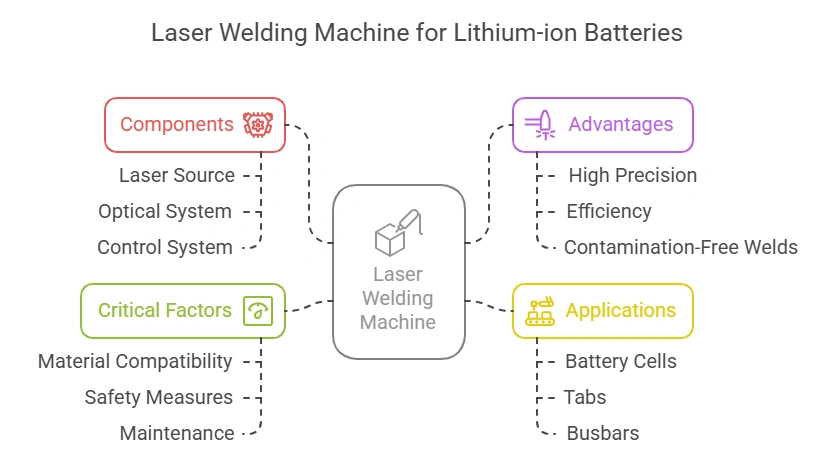

The laser welding machine for lithium-ion batteries has emerged as a cornerstone technology in the battery manufacturing industry. As the demand for high-performance, reliable lithium-ion batteries continues to soar across sectors like electric vehicles, consumer electronics, and energy storage, the precision and efficiency offered by these machines are unparalleled. This blog post will explore the essential components and advantages of laser welding machines, their role in different battery formats, and the critical factors that ensure their optimal performance and safety. Whether you are an industry professional or simply interested in the technology behind modern batteries, this article will provide a comprehensive look at how laser welding machines are shaping the future of energy storage.
What is a Laser Welding Machine for Lithium-ion Batteries?
A laser welding machine for lithium-ion batteries is a precision tool that uses focused laser beams to join battery components with high accuracy. It ensures strong, contamination-free welds critical for battery performance and safety. These machines are widely used in assembling battery cells, tabs, and busbars due to their ability to work with heat-sensitive materials like copper, aluminum, and nickel.
Key advantages include:
- Minimal heat-affected zone (HAZ) – Prevents damage to nearby battery materials.
- Non-contact process – Reduces mechanical stress on delicate components.
- High repeatability – Ensures uniform welds for mass production.
Industries like electric vehicles (EVs), consumer electronics, and energy storage rely on this technology for efficient, high-quality battery manufacturing.
What Are the Main Components of a Laser Welding Machine?
A laser welding machine consists of several critical parts that ensure precise and efficient operation:
- Laser Source – Generates the laser beam (fiber, CO₂, or Nd:YAG).
- Optics System – Includes lenses and mirrors to focus and direct the laser.
- Motion Platform – Controls the movement of the laser head or workpiece (e.g., CNC stages, robotic arms).
- Cooling System – Maintains optimal temperature for the laser source.
- Control Software – Programs welding parameters (power, speed, pulse frequency).
- Monitoring Sensors – Detects weld quality in real-time (e.g., CCD cameras, pyrometers).
Each component plays a vital role in achieving consistent, high-speed welding for lithium-ion battery production.
Why Are Fiber Lasers Most Used for Lithium-Ion Battery Welding?
Fiber lasers dominate lithium-ion battery welding due to their superior performance compared to CO₂ or Nd:YAG lasers. Here’s why:
- Higher Efficiency – Converts 30–50% of electrical energy into laser light (CO₂ lasers: ~10%).
- Precision – Delivers a smaller focal spot (10–50 µm) for fine welding of thin battery foils.
- Flexibility – Compatible with reflective metals like copper and aluminum.
- Low Maintenance – Solid-state design with no moving parts reduces downtime.
Additionally, fiber lasers support:
✔ Pulsed or continuous-wave (CW) modes for varied applications.
✔ High-speed welding (up to 100s of mm/s) for mass production.
How is Laser Welding Used in Cylindrical, Pouch, and Prismatic Cell Assembly?
Laser welding adapts to different lithium-ion battery formats with tailored approaches:
Cylindrical Cells (e.g., 18650, 21700)
-
Step-by-Step Process:
- Welding the cathode/anode tabs to the cell terminals.
- Joining the current collector to the battery cap.
- Sealing the casing with hermetic welds.
Pouch Cells
- Ultrathin foils require low-power pulses to avoid piercing.
- Tab welding (Al/Cu) must prevent electrolyte leakage.
Prismatic Cells
- Laser-welded busbars connect multiple cells in modules.
- Robust casing welds ensure structural integrity.
Each format demands specific laser parameters (wavelength, pulse duration) to prevent overheating or deformation.
What Are the Cleanroom Requirements for Laser Welding Lithium Batteries?
Laser welding lithium-ion batteries often occurs in controlled environments to avoid contamination. Critical requirements include:
- ISO Class 5–8 Cleanrooms – Filters particles >0.3–0.5 µm.
- Temperature/Humidity Control – Maintains 20–25°C and <1% RH variation.
- Inert Gas Shielding – Argon/Nitrogen prevents oxidation during welding.
Why It Matters:
- Dust or moisture can cause weak welds or short circuits.
- Stable conditions ensure repeatable weld quality.
What Are the Common Inspection Methods for Laser Welded Lithium-Ion Batteries?
Quality inspection ensures reliable welds in lithium-ion battery production. Three key methods are used:
-
Pull Test
- Measures weld strength by applying tensile force until failure
- Minimum requirements: 50N for copper tabs, 30N for aluminum
- Why it matters: Identifies weak joints that could fail during use
-
Cross-Section Analysis
- Step-by-step process:
- Cut through weld joint
- Polish sample
- Examine under microscope
- Reveals: Penetration depth, pore formation, heat-affected zone
- Step-by-step process:
-
X-Ray CT Scanning
- Non-destructive 3D imaging of internal weld structure
- Detects: Voids, cracks, and misalignments invisible to surface inspection
- Typical resolution: 5-20 microns for battery applications
How to Ensure Operator Safety When Using Laser Welding Machines
Laser welding presents several hazards that require strict safety measures:
Essential Safety Equipment:
- Laser goggles with OD4+ rating for specific wavelength
- Fire-resistant clothing for protection against sparks
- Fume extractors to remove metal vapors
Machine Safety Features:
✔ Interlocks that disable laser when doors open
✔ Emergency stop buttons within easy reach
✔ Light curtains that halt operation when breached
✔ Audible/visual warning systems before firing
Why These Matter:
- Class 4 lasers can cause permanent eye damage in milliseconds
- Reflective metals increase risk of stray beam hazards
- Proper training reduces 90% of potential accidents
What Should Be Included in a Routine Maintenance Schedule?
Regular maintenance prevents costly downtime and ensures weld quality:
Daily Tasks:
- Clean optics with lint-free wipes and approved solvent
- Check gas supply pressure (typically 10-20 psi)
- Verify cooling system operation
Weekly Tasks:
- Perform laser power calibration
- Inspect focus lens for damage
- Test safety interlocks
Monthly Tasks:
- Full optical path alignment
- Motion system lubrication
- Backup parameter settings
Critical Signs Needing Immediate Attention:
- 10% drop in laser power output
- Increased spatter during welding
- Irregular beam profile
How to Integrate Laser Welding with Battery Cell Stacking and Automated Lines
Modern battery production requires seamless integration:
Key Integration Points:
-
Material Handling
- Automated feeders for battery tabs
- Vision-guided robots for precise part placement
-
Process Synchronization
- Laser triggers synchronized with stacking machine
- Real-time quality feedback to adjust parameters
-
Data Tracking
- Weld logs for each battery cell (time, power, location)
- Traceability through QR code/MES systems
Why Integration Matters:
- Reduces manual handling by 70%
- Increases production speed to 1-2 cells per second
- Enlights 100% weld inspection through inline cameras
This article offers a detailed examination of the laser welding machine for lithium-ion batteries, a crucial tool in contemporary battery manufacturing. We break down the key components of these machines, such as the laser source, optics system, motion platform, cooling system, control software, and monitoring sensors, and explain how they work together to achieve precise and efficient welding. The piece also highlights why fiber lasers are the industry’s preferred choice, thanks to their high efficiency, precision, flexibility, and low maintenance. Additionally, we explore how laser welding is tailored for cylindrical, pouch, and prismatic cell assembly, discuss cleanroom requirements, and outline common inspection methods. Safety measures and routine maintenance tips are also covered, along with the integration of laser welding with automated production lines. Overall, this article underscores the vital role of the laser welding machine for lithium-ion batteries in ensuring the quality, safety, and scalability of modern battery production.
