The lithium battery spot welding machine has become an essential tool in the modern manufacturing landscape, particularly in industries where precision and reliability are paramount. From electric vehicles to consumer electronics, this specialized device offers a superior alternative to traditional soldering methods, ensuring high-quality connections without compromising battery integrity. In this blog, we will explore the key features, components, and operational principles of the lithium battery spot welding machine. We’ll also dive into its applications, maintenance tips, and troubleshooting techniques, providing you with a comprehensive understanding of this critical technology.
What Is a Lithium Battery Spot Welding Machine?
A lithium battery spot welding machine is a specialized device used to join thin metal tabs to battery cells (e.g., Ni-MH, Li-ion) through precise electrical resistance heating. Unlike traditional soldering, spot welding avoids heat damage to sensitive battery components by delivering controlled, high-current pulses for milliseconds.

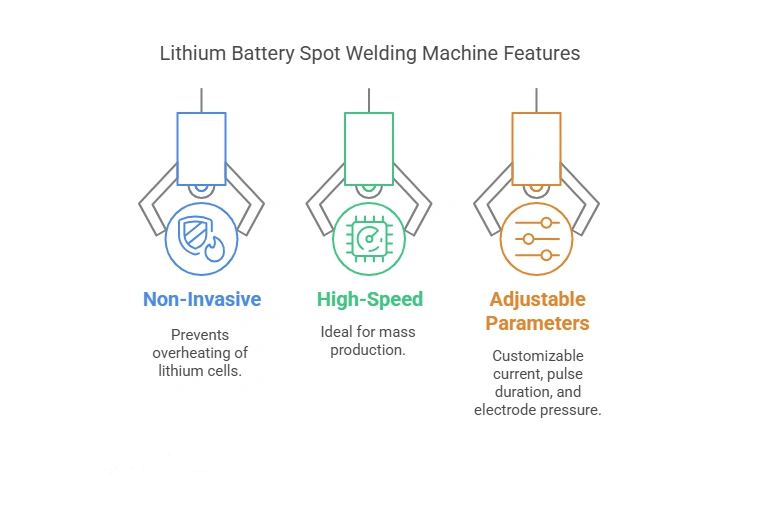

Key Features:
- Non-invasive: Prevents overheating of lithium cells.
- High-speed: Ideal for mass production (e.g., EV batteries, power tools).
- Adjustable parameters: Customizable current, pulse duration, and electrode pressure.
Structure and Components of a Lithium Battery Spot Welder
A spot welder’s efficiency depends on its core parts:
Main Components:
- Power Supply: Converts AC to low-voltage, high-current DC (e.g., 1000–3000A).
- Control Unit: Microprocessor for timing/pulse adjustment (critical for thin nickel strips).
- Electrodes: Copper alloy tips conduct current to the welding point.
- Foot Pedal/Trigger: Activates the welding cycle manually or automatically.
Why Materials Matter:
- Copper electrodes resist oxidation for consistent performance.
- MOSFET/transformer-based systems ensure energy efficiency.
How Does a Lithium Battery Spot Welding Machine Operate in Production?
Step-by-Step Workflow:
-
Preparation:
- Clean battery terminals and nickel strips to remove oxidation.
- Set parameters (e.g., 5ms pulse, 2000A current for 0.15mm nickel).
-
Alignment:
- Position electrodes over the tab and cell terminal.
-
Welding:
- Press the pedal; current flows, melting metals locally to form a nugget.
-
Inspection:
- Check weld strength (peel test) and consistency.
Pro Tip:
- Use a pulse tester to optimize settings for different thicknesses.
Working Principle of Lithium Battery Spot Welding
Why Resistance Welding?
When current passes through overlapping metals (e.g., nickel and battery terminal), resistance generates heat (~800–1000°C), fusing them without filler material.
Key Physics:
- Joule’s Law: Heat (Q) = I² × R × t (current² × resistance × time).
- Pressure: Electrodes clamp materials to reduce contact resistance.
Example:
A 0.2mm nickel strip welds at 2500A for 3ms, creating a bond stronger than the base metal.
Where Are Lithium Battery Spot Welders Used?
Industries Relying on Spot Welders:
- Electric Vehicles (EVs): Battery pack assembly (Tesla’s 4680 cells).
- Consumer Electronics: Smartphone/drone battery repairs.
- Energy Storage: Solar battery bank manufacturing.
Material Compatibility:
- Works with nickel, steel, and aluminum tabs (avoid copper without coatings).
Limitations:
- Unsuitable for thick metals (>0.5mm) or dissimilar conductivity pairs.
What Is the Ideal Working Environment for a Lithium Battery Spot Welding Machine?
To ensure optimal performance and safety, lithium battery spot welders require specific environmental conditions:
Key Requirements:
- Temperature: 10–30°C (extreme heat/cold affects electronics and weld consistency).
- Humidity: Below 70% to prevent electrode oxidation and electrical hazards.
- Ventilation: Fume extraction recommended for large-scale production (ozone/byproducts).
- Power Stability: Voltage fluctuations >5% can damage control circuits; use a regulator.
Why It Matters:
- Dirty/moist environments cause poor conductivity (e.g., corroded electrodes).
- Static electricity in dry air may harm sensitive battery cells.
How to Test and Ensure Quality in Lithium Battery Spot Welding?
Step-by-Step Testing Protocol:
-
Visual Inspection:
- Check for consistent nugget size (no cracks or discoloration).
-
Peel Test:
- Weld a nickel tab, then peel it back; the metal should tear, not the weld.
-
Resistance Check:
- Measure joint resistance with a milliohm meter (<2mΩ for 0.1mm nickel).
-
Destructive Testing (Sample Basis):
- Cross-section a weld to verify penetration depth (60–80% of material thickness).
Industry Standards:
- ISO 14373: Resistance welding of thin materials.
- UL 2580: EV battery safety compliance.
How to Maintain Your Lithium Battery Spot Welding Machine?
Routine Maintenance Tasks:
-
Daily:
- Clean electrodes with sandpaper (remove oxidation).
- Check coolant levels (for water-cooled models).
-
Weekly:
- Tighten loose cables/terminals (high current causes vibration).
- Calibrate pressure settings (force gauge recommended).
-
Monthly:
- Replace worn electrodes (pitted surfaces increase resistance).
Pro Tip:
- Log maintenance dates and weld parameters to track performance trends.
How to Troubleshoot Common Lithium Battery Spot Welding Problems?
Problem: Weak/No Weld
-
Causes & Fixes:
- Low current: Increase amperage or check transformer connections.
- Dirty electrodes: Clean or replace copper tips.
- Poor contact: Adjust electrode pressure (20–50N typical).
Problem: Electrode Sticking
-
Causes & Fixes:
- Overheating: Reduce pulse time or use stepped current.
- Wrong material: Switch to Class 2 copper electrodes.
Safety Note: Always power off before inspecting internal components.
How to Choose the Right Spot Welder for Your Battery Pack Design?
Selection Criteria:
-
Battery Type:
- Low-power (500A): Thin nickel tabs (18650 cells).
- High-power (3000A+): Prismatic/pouch cells (EVs).
-
Production Volume:
- Manual welders: Prototyping/small batches.
- Automated systems: 100+ welds/hour.
-
Key Features:
- Pulse control: Dual/triple pulses for thick stacks.
- Data logging: Essential for QC documentation.
This article provides a detailed overview of the lithium battery spot welding machine, a specialized tool used for joining thin metal tabs to battery cells with precision and efficiency. We discuss its key features, such as non-invasive welding and adjustable parameters, as well as its core components, including the power supply, control unit, electrodes, and foot pedal. The working principle of resistance welding is explained, highlighting the importance of Joule’s Law and electrode pressure. We also cover the ideal working environment for these machines, quality control standards, and essential maintenance practices. Additionally, we provide troubleshooting tips for common issues and guidance on selecting the right spot welder based on battery type and production volume. By the end of this article, readers will have a thorough understanding of how to utilize and maintain a lithium battery spot welding machine for optimal performance.
