China wholesale cylindrical cell pack factory manufacturer supplier

Application: The equipment uses semi-automatically to complete the OCV, electrode cutting and shaping of the cell. This equipment is a four-position rotary table: manual loading position, OCV detection and pre-shaping position, pole cutting position, pole shaping position; the mechanical part is realized by the use of servo motors and SMC cylinders. Convergence between various positions.…

Application: The machine automatically completes the welding process of the PCM board of the battery cell. The machine is equipped with an edge gateway, a data acquisition system, a code scanning card station, and a real-time data upload and traceability management MES system. Adopting four process mechanisms of the turntable: feeding and discharging process position,…

Features:Used for MOBILE PHONE,TWS,TP,LAPTOP, WIRELESS CHARGER, FPC etc..Compact design, less space,can mount two different accessories in one machineUse CCD positioning, high precision, no need to use fixtures, save a lot of fixture costs, fast line changeCan read QR code, upload MES, traceableUsing belt transmission, no jigs are required, reducing product collisions, reducing the risk of…

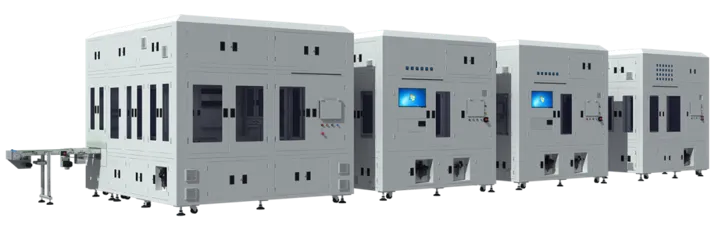

Application: This production line is applied in mobile phone battery & electronic product battery PACK process. It is a customized for lithium battery manufacturing. Our design varies from customer requirements. The brief information is as follows: Parameters:Size：26m * 1.2 m * 1.8mCapacity：≥15 ppm (cells)Yield： 99.8%

Application: This machine is applied to cylindrical cell sticking&sorting, the surface pad material is highland barley paper or PVC material, slow wire walking, high precision, include 21 inch LCD screen + PC synchronous display + industrial computer, the brief information is as follows: Parameters: Equipment power supply: single-phase ~ 220V, 50HzCells: 18650 (21700, 26650, OEM)Cushioning…

Application: This machine is applied to cylindrical cell sticking, the surface pad material is highland barley paper or PVC material, slow wire walking, high precision, include 21 inch LCD screen + PC synchronous display + industrial computer, the brief information is as follows: Parameters: Equipment power supply: single phase ~ 220V, 50HzRated power: 1.5KW.Material requirements:…

Features:Used for MOBILE PHONE,TWS,TP,LAPTOP, WIRELESS CHARGER, FPC etc..Compact design, less space,can mount two different accessories in one machine.Use CCD positioning, high precision, no need to use fixtures, save a lot of fixture costs, fast line change.Can read QR code, upload MES, traceable.Using belt transmission, no jigs are required, reducing product collisions, reducing the risk of…

Features:Used for MOBILE PHONE, TWS, TP, LAPTOP, WIRELESS CHARGER, FPC etc.Compact design, less space,can mount two different accessories in one machine.Use CCD positioning, high precision, no need to use fixtures, save a lot of fixture costs, fast line change.Can read QR code, upload MES, traceable.Using belt transmission, no jigs are required, reducing product collisions, reducing…

Application:This machine is used for compacting the electrode sheet after coating process, and it can also keep the surface smooth and flat to prevent the short circuit caused by burr on electrode sheets surface piercing the separator. With high precision, stable performance and reasonable structure, it can be customized according to customer requirements No.ItemsSpecification1Devices External SizeAccording to the Technical agreement requirement2Production SpeedMax: 120m/min(Continuous coating)3Fit Roll Range200~1400mm4Fit Substrate Width RangeMax. 1350mm5Linear PressureMax. 6.5t/cm6Tension fluctuation±2N7Stretch tension control range30~1200N8Tension Control30~500N9Devices Power SupplyAC380V±10%, 3Ph, 50Hz10Total Electrical Power≤100KW11Devices Air Source0.5~0.8MPa, 10m³/h12Devices Failure Rate≤2%13Product Qualification Rate≥99%

Application: The machine uses semi-automatic to complete the thickness measurement of the battery cell. This equipment includes: bottom frame, lithium battery fixture platform, thickness measuring mechanism, Z-axis guide mechanism, lever balance mechanism, etc. The mechanical part uses servo motors to realize the connection between various actions. The control part is composed of the HMI (human-machine…
