T6K Accessories placement machine - Taipu Technology

Features:Used for MOBILE PHONE,TWS,TP,LAPTOP, WIRELESS CHARGER, FPC etc..Compact design, less space,can mount two different accessories in one machine.Use CCD positioning, high precision, no need to use fixtures, save a lot of fixture costs, fast line change.

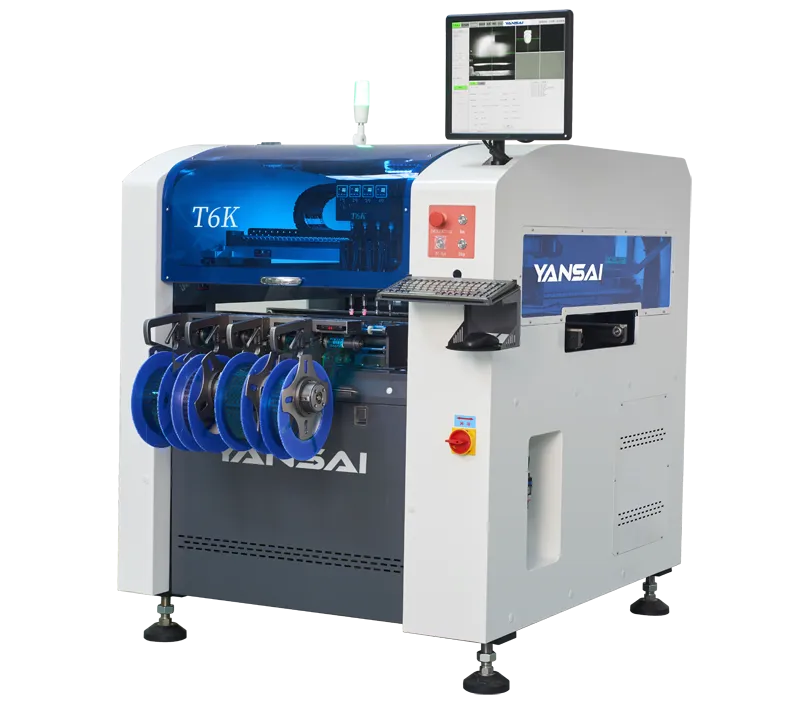

T6K Accessories Placement Machine: Streamlining Electronic Component Assembly

The T6K Accessories Placement Machine is a state-of-the-art device designed for the precise placement of accessories in the manufacturing of a wide range of electronic products, from mobile phones to laptops. Its compact design and dual accessory mounting capability make it a space-saving solution for high-precision assembly.

How the T6K Machine Operates

The T6K machine integrates advanced technologies to streamline the accessory placement process:

1. Component Feeding: The machine automatically feeds components into the system, ready for placement.

2. CCD Positioning: High-precision CCD cameras ensure each component is accurately positioned without the need for fixtures, allowing for quick changeovers.

3. QR Code Reading and Tracing: The machine reads QR codes for part identification and integrates with MES for full traceability.

4. Belt Transmission: A belt transmission system eliminates the need for jigs, reducing the risk of product damage.

5. XY Mechanism: The robust, integral XY transmission mechanism ensures a long service life and reliable performance.

Advantages of the T6K Placement Machine

The T6K machine offers several advantages that can enhance your electronic manufacturing process:

- High-Speed Capacity: With a capacity of 3600-6000pcs/H, the T6K allows for high-volume production.

- Consistent Precision: The machine's precision helps avoid common placement errors, ensuring quality.

- Versatility: Capable of handling a variety of accessory sizes, from large components to small, precise items.

- Space Efficiency: Despite its capabilities, the T6K has a compact footprint, suitable for facilities with limited space.

Versatility and Customization

The T6K is designed with versatility in mind, adaptable to various component sizes and production requirements. Customizable options include adjustable mounting sizes and repeatability within ±0.05mm to suit specific manufacturing needs.

Seamless Integration and User-Friendly Operation

The T6K is engineered for seamless integration into existing production lines with SMEMA interface compatibility. Its user-friendly interface and automated processes reduce the need for specialized training, ensuring quick adoption and minimal downtime.

Comprehensive Support and Services

Our commitment to your success includes comprehensive support services such as on-site installation, operator training, and ongoing maintenance. Remote support is also available to promptly address any operational concerns.

Contact Us

To revolutionize your electronic component assembly with precision and efficiency, contact us today. Discover how the T6K Accessories Placement Machine can streamline your manufacturing processes, enhance product quality, and provide a competitive edge in the electronics market.

Features:
Used for MOBILE PHONE,TWS,TP,LAPTOP, WIRELESS CHARGER, FPC etc..
Compact design, less space,can mount two different accessories in one machine.
Use CCD positioning, high precision, no need to use fixtures, save a lot of fixture costs, fast line change.
Can read QR code, upload MES, traceable.
Using belt transmission, no jigs are required, reducing product collisions, reducing the risk of scratches, bumps, etc.
The XY transmission mechanism is integrally formed and has a long service life.
The machine has high precision and can effectively solve problems such as over-posting, re-posting, under-posting, missed posting, and partial posting, the brief information is as follows:

Parameters:

  • Model: T6K
  • Size: 1000mm × 1300mm × 1500 mm
  • Capacity: 3600-6000pcs/H
  • Input: 220V,50/60HZ,2.5KW
  • Mounting size: Max25mm × 35mm, Min3mm × 3mm
  • Axis-z travel: Max36mm
  • Roll width: Max120mm
  • Product thickness: 2-30mm
  • Mounting repeatability: ±0.05mm
  • Interface: SMEMA
  • Air pressure: 6KG/c㎡
  • Transmission speed: 300mm/S
  • Feeders: 4pcs
  • CCD: 2,000,000 pixels
