Cell Stacking Machine with Customers’ Requirements

Build your cell stacking machine line for the factory with Topower's service. The manufacturing line can be custom made for your production need. Enquire now.

Cell Stacking Machine

May 4, 2023

Follow me on:

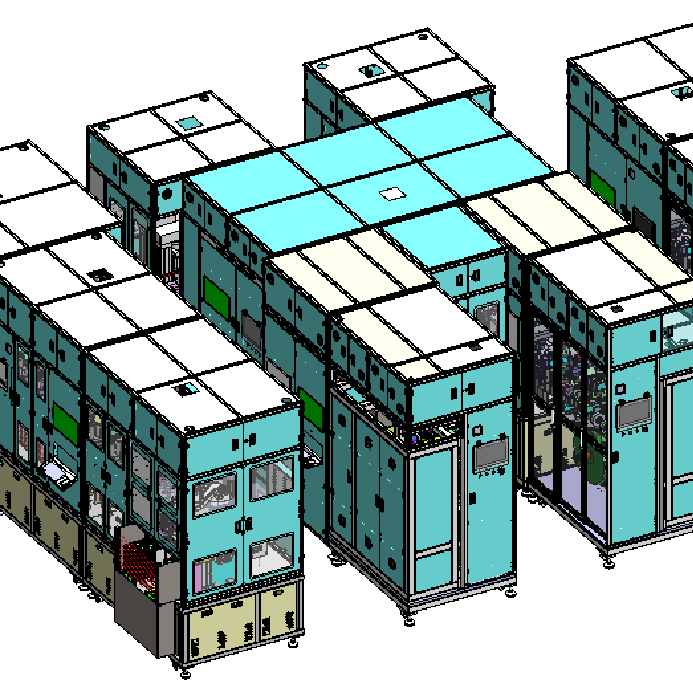

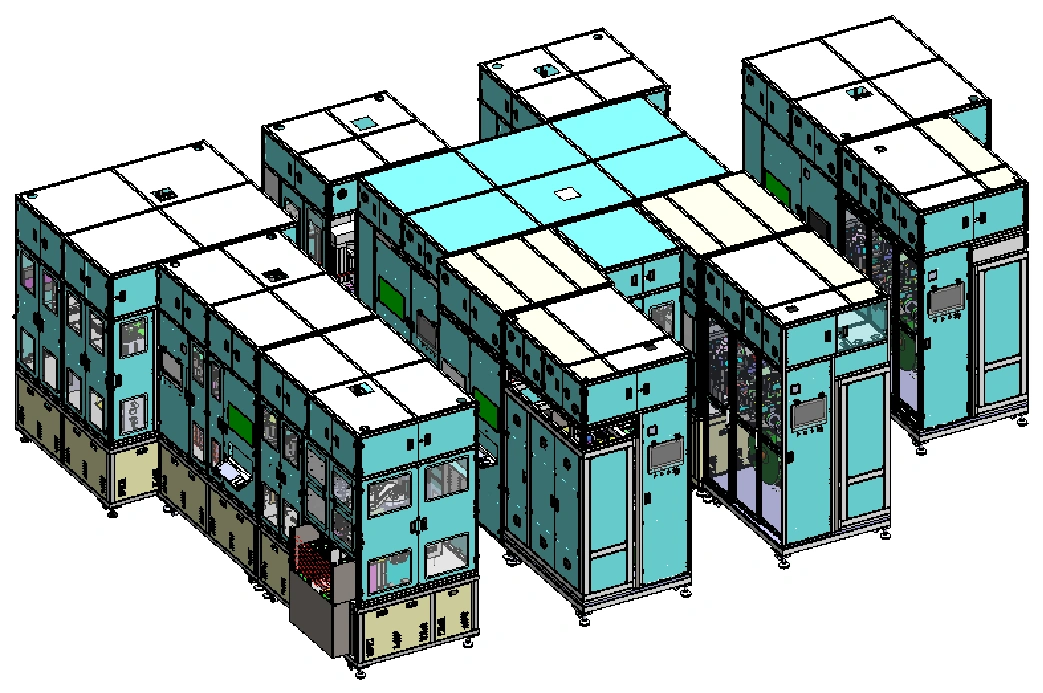

Application: This equipment is applied for the cell stacking process and is a customized machine. Our design varies customers’ requirements, the brief information is as follows:

Parameters:
Size: 9.45m × 6.1m × 2.8m
Capacity: ≥3 ppm (31 layers)
Range: Lmax / 150mm, Wmax / 120mm
Accuracy: ±0.1mm

Cell Stacking Machine Information

What is a Cell Stacking Machine?

A Cell Stacking Machine is an advanced automated system used in the production of battery cells. It is specifically designed to assemble and stack electrode layers, separators, and other components with high precision. This machine plays a crucial role in the manufacturing of lithium-ion batteries, fuel cells, and other energy storage devices, ensuring uniformity and efficiency in the stacking process.

What Are the Key Features and Functionality of the Cell Stacking Machine?

The Cell Stacking Machine is equipped with a range of innovative features that make it indispensable in battery production:

  • High Precision Alignment: The machine ensures accurate alignment of electrode layers and separators, minimizing defects and improving battery performance.

  • Automated Operation: With advanced robotics and control systems, the machine automates the stacking process, reducing manual intervention and human error.

  • Modular Design: Its modular structure allows for customization to meet specific production requirements, making it adaptable to various battery types and sizes.

  • High-Speed Stacking: The machine is capable of handling high-speed production lines, significantly increasing throughput and efficiency.

  • Quality Control Integration: Built-in sensors and inspection systems monitor the stacking process in real-time, ensuring consistent quality and reducing waste.

Where is the Cell Stacking Machine Used?

The Cell Stacking Machine is widely used in industries that rely on advanced battery technology, including:

  • Electric Vehicles (EVs): For producing high-capacity lithium-ion batteries used in EVs.

  • Consumer Electronics: In the manufacturing of batteries for smartphones, laptops, and other portable devices.

  • Renewable Energy Storage: For assembling batteries used in solar and wind energy storage systems.

  • Industrial Equipment: In the production of batteries for industrial machinery and backup power systems.

What Are the Technical Specifications and Working Conditions?

The Cell Stacking Machine operates under specific conditions to ensure optimal performance:

  • Power Supply: Compatible with standard industrial power sources.

  • Temperature Range: Functions efficiently within a temperature range of 15°C to 30°C.

  • Humidity Control: Operates reliably in environments with controlled humidity levels (typically below 60% RH).

  • Duty Cycle: Designed for continuous operation, supporting 24/7 production lines with minimal downtime.

How Does the Cell Stacking Machine Work?

The Cell Stacking Machine follows a systematic process to ensure precise and efficient battery assembly:

  • Material Feeding: Electrode sheets and separators are fed into the machine from designated rolls or trays.

  • Alignment and Stacking: The machine aligns the layers with micron-level precision and stacks them in the required sequence.

  • Compression: The stacked layers are gently compressed to ensure proper adhesion and eliminate air gaps.

  • Inspection: Integrated sensors and cameras inspect the stacked layers for defects or misalignments.

  • Output: The completed cell stack is transferred to the next stage of the production line for further processing.

What Are the Advantages of Using the Cell Stacking Machine?

The Cell Stacking Machine offers numerous benefits that make it a valuable asset in battery manufacturing:

  • Enhanced Production Efficiency: Automation and high-speed capabilities significantly increase output rates.

  • Superior Product Quality: Precision alignment and real-time quality control ensure consistent and reliable battery performance.

  • Cost Savings: Reduced material waste and lower labor costs contribute to overall cost-effectiveness.

  • Scalability: The machine’s modular design allows for easy scaling to meet growing production demands.

  • Sustainability: By minimizing defects and waste, the machine supports environmentally friendly manufacturing practices.

What Should You Consider Before Using the Cell Stacking Machine?

To maximize the performance and longevity of the Cell Stacking Machine, consider the following factors:

  • Operator Training: Ensure operators are well-trained to handle the machine and troubleshoot minor issues.

  • Regular Maintenance: Schedule routine maintenance to prevent unexpected downtime and maintain peak performance.

  • Environmental Control: Maintain stable temperature and humidity levels in the production area to ensure consistent operation.

  • Material Quality: Use high-quality electrode sheets and separators to avoid defects and ensure smooth operation.
