Pouch cell thickness testing machine

Follow me on:

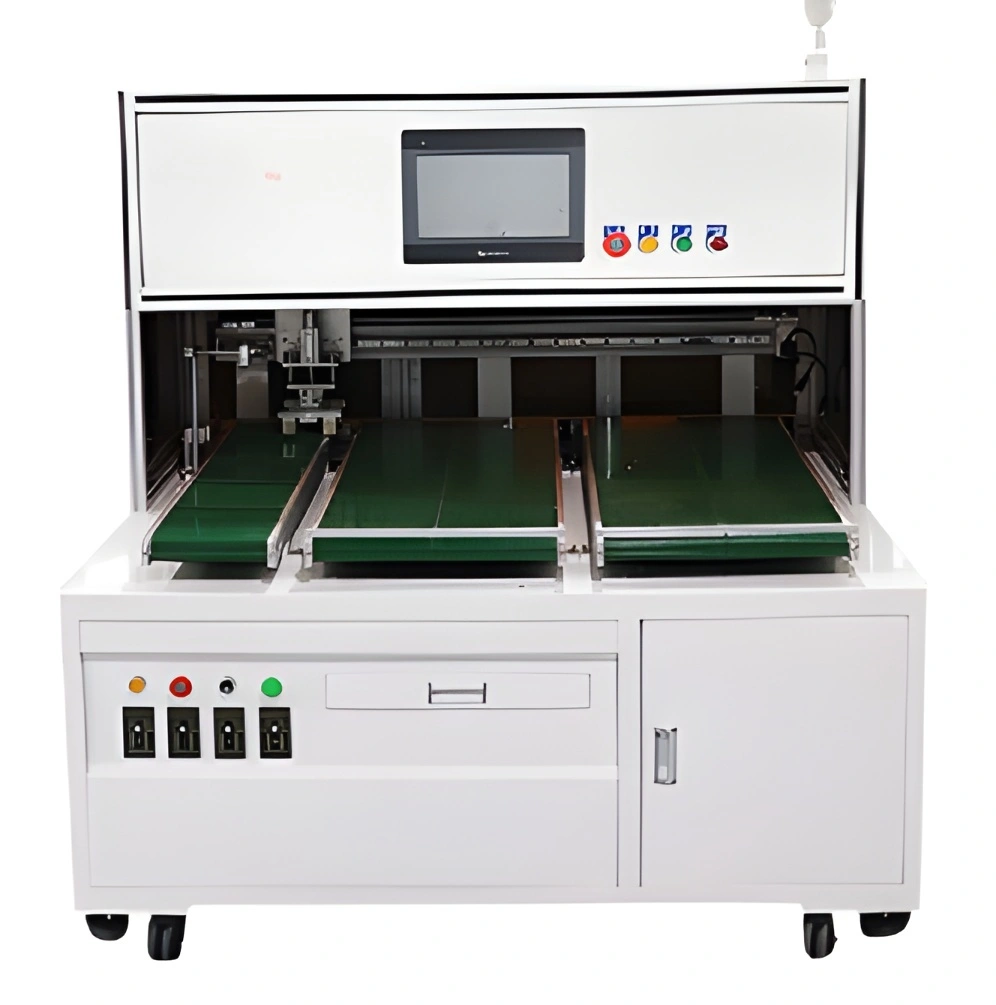

Application: The machine uses semi-automatic to complete the thickness measurement of the battery cell. This equipment includes: bottom frame, lithium battery fixture platform, thickness measuring mechanism, Z-axis guide mechanism, lever balance mechanism, etc. The mechanical part uses servo motors to realize the connection between various actions. The control part is composed of the HMI (human-machine interface), and a variety of sensors cooperated with the control machine, from which the mechanical part is driven to achieve reliable sequential actions, the brief information is as follows:


  • Size: 530mm × 500mm × 540mm
  • Weight: 45kg
  • Efficiency: >800UPH
  • Scrap rate caused by machine: less than 0.01%
  • Defect rate caused by machine: less than 0.5%
  • Failure rate: less than 2%
  • Flat uniformity: ±0.02mm
  • Compression range: 1000g±40g≤G≤2000g±100g
  • Operation: manual operation of load/unload cell
  • Control mode: manual
  • Number of operators: 1 operator
