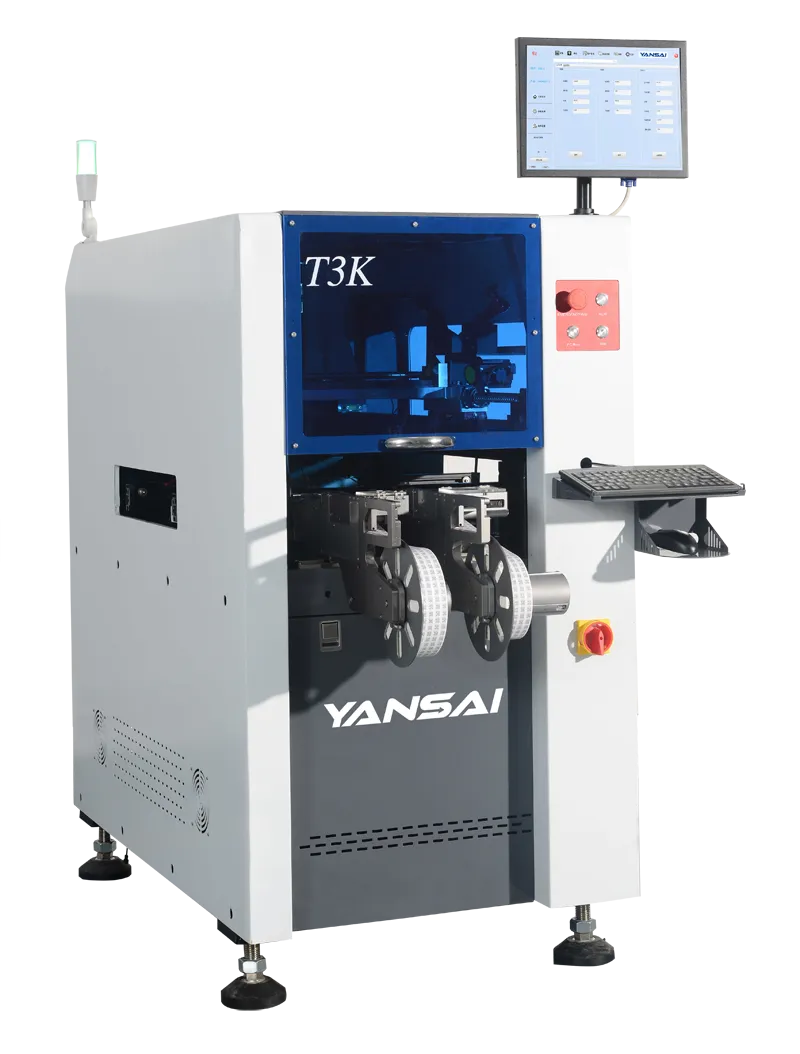

T3K Accessories placement machine - Taipu Technology

Features:Used for MOBILE PHONE, TWS, TP, LAPTOP, WIRELESS CHARGER, FPC etc.Compact design, less space,can mount two different accessories in one machine.Use CCD positioning, high precision, no need to use fixtures

T3K Accessories Placement Machine: Precision Assembly for the Electronics Industry

The T3K Accessories Placement Machine is a state-of-the-art device tailored for the precise placement of accessories in the manufacturing of mobile phones, TWS, touch panels, laptops, wireless chargers, FPC, and more. Its compact design and dual accessory mounting capability make it an ideal solution for manufacturers looking for a space-efficient and high-precision placement machine.

How the T3K Machine Operates

The T3K machine integrates advanced technologies to ensure a seamless and accurate placement process:

1. Component Handling: The machine is designed to automatically feed and position a variety of accessory sizes with precision alignment mechanisms.

2. CCD Positioning: It employs high-precision CCD cameras for accurate component positioning, eliminating the need for fixtures and reducing costs.

3. Reading and Tracing: The T3K can read QR codes and interface with MES systems, ensuring full traceability throughout the manufacturing process.

4. Belt Transmission: Utilizing belt transmission, the machine avoids the need for jigs, reducing product collisions and the risk of damage.

5. High Precision: The machine effectively prevents common placement errors such as over-posting, re-posting, under-posting, missed posting, and partial posting.

Advantages of the T3K Placement Machine

Incorporating the T3K into your production line offers several key benefits:

- High-Speed Capacity: With a capacity of 2200-3000pcs/H, the T3K allows for high-volume production to meet market demands.

- Consistent Quality: Precise placement and integrated inspection systems ensure uniform quality across all products.

- Versatility: The T3K is adaptable to various component sizes and types, making it a versatile addition to any manufacturing line.

- Space Efficiency: Despite its high capacity, the T3K has a compact footprint, ideal for facilities with limited space.

Versatility and Customization

The T3K is designed with customization in mind, allowing it to adapt to different production requirements. It can be tailored to handle specific accessory sizes and types, with adjustable mounting sizes and repeatability within ±0.07mm.

Seamless Integration and User-Friendly Operation

The T3K is engineered for seamless integration into existing production lines with SMEMA interface compatibility. Its user-friendly interface and automated processes reduce the need for specialized training, ensuring quick adoption and minimal downtime.

Comprehensive Support and Services

Our commitment to your success includes comprehensive support services such as on-site installation, operator training, and ongoing maintenance. Remote support is also available to promptly address any operational concerns.

Contact Us

To enhance your electronic manufacturing process with precision and efficiency, contact us today. Discover how the T3K Accessories Placement Machine can streamline your production, ensure quality, and provide a competitive edge in the electronics market.

Compact design, less space,can mount two different accessories in one machine.
Use CCD positioning, high precision, no need to use fixtures, save a lot of fixture costs, fast line change.
Can read QR code, upload MES, traceable.
Using belt transmission, no jigs are required, reducing product collisions, reducing the risk of scratches, bumps, etc.
The XY transmission mechanism is integrally formed and has a long service life.
The machine has high precision and can effectively solve problems such as over-posting, re-posting, under-posting, missed posting, and partial posting, the brief information is as follows:


  • Model: T3K
  • Size: 770mm × 1360mm × 1450 mm
  • Capacity: 2200-3000pcs/H
  • Input: 220V,50/60HZ,2.5KW
  • Mounting size: Max30mm × 80mm, Min3mm × 3mm
  • Axis-z travel: Max36mm
  • Roll width: Max120mm
  • Product thickness: 2-30mm
  • Mounting repeatability: ±0.07mm
  • Interface: SMEMA
  • Air pressure: 6KG/c㎡
  • Transmission speed: 300mm/S
  • Feeders: 2pcs
  • CCD: 2,000,000 pixels
