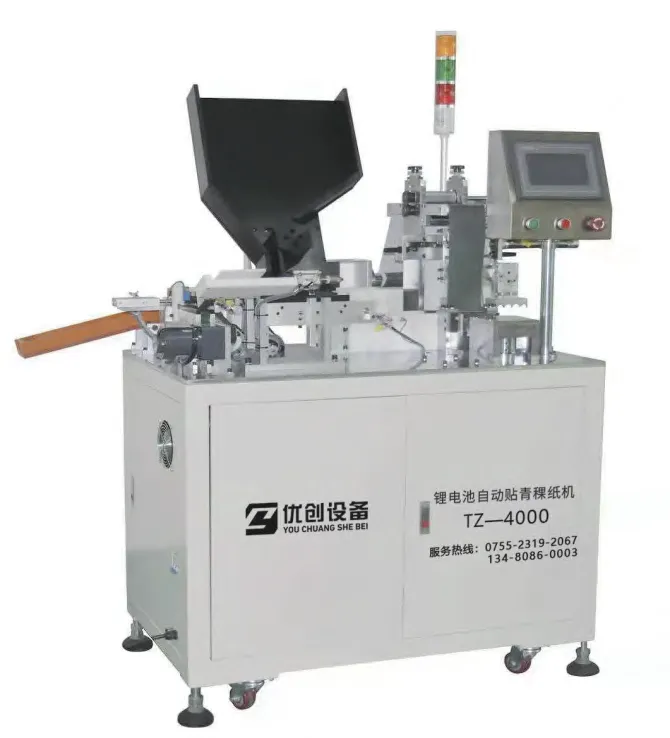

Sticking machine for cylindrical cells

Follow me on:

Application: This machine is applied to cylindrical cell sticking, the surface pad material is highland barley paper or PVC material, slow wire walking, high precision, include 21 inch LCD screen + PC synchronous display + industrial computer, the brief information is as follows:


  • Equipment power supply: single phase ~ 220V, 50Hz
  • Rated power: 1.5KW.
  • Material requirements: the maximum insulation paper roll material (W) 100MM, (H) 0.3MM; the maximum
  • diameter of the insulation roll material is 350MM, and the inner diameter of the paper roll core is 72-75MM.
  • Feeding method: Put into the discharge core hopper, 500PCS can be put in one time.
  • Use air pressure: 0.4-0.8Mpa.
  • Cushioning power: Pneumatic (Airtac).
  • Control device: 7.0 inch touch screen, PLC programmer and servo motor.
  • Efficiency: 4500-4800PCS/h, 18650 cell punching pad 4PCS, 21700, 26650, 32650 punching pad 3PCS
  • Overall dimensions: 1000mm × 700mm × 1630mm
