Lithium Battery Manufacturing Winding Process


Follow me on:

1.Introduction to Winding Process

The winding process is a critical component in the manufacturing of lithium batteries. It involves the precise and controlled winding of materials such as positive electrodes, negative electrodes, and separators under specific tension, following a predetermined sequence and direction, to form the battery cell.

The quality of the winding process directly impacts the performance and lifespan of lithium batteries. Therefore, in-depth research and optimization of the winding process are of significant importance.

2.Winding Process Flow

2.1 Material Preparation: Prior to the start of the winding process, the positive electrodes, negative electrodes, separators, and other raw materials are prepared according to specified specifications and quantities. These materials undergo testing to ensure their performance and quality meet the process requirements.

2.2 Tension Control: During the winding process, materials are subjected to a specific tension to ensure uniformity and tightness of the winding. The tension level is precisely controlled based on the material characteristics and process requirements.

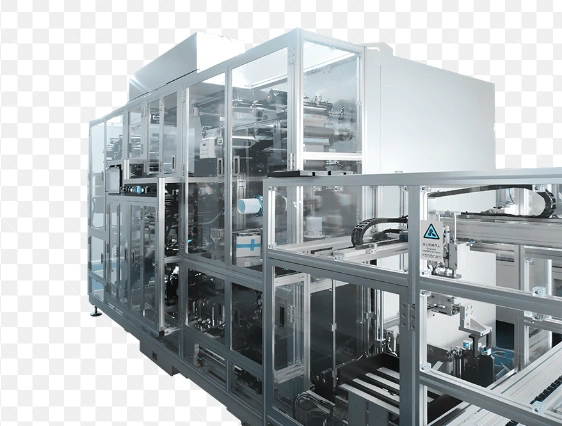

2.3 Winding Formation: Once the raw materials are prepared and appropriate tension is applied, the winding machine proceeds with the winding process following predetermined paths and speeds. Stable winding speed and tension are maintained to ensure the structure and dimensions of the battery cell meet the design requirements.

2.4 Quality Inspection: After the winding process is complete, a comprehensive quality inspection of the battery cell is conducted. Inspection includes evaluating the appearance, dimensions, weight, and performance parameters of the cell. Only qualified battery cells proceed to the next process.

2.5 Post-processing: For qualified battery cells, further packaging and assembly are performed to produce the final usable lithium battery product.

3. Key Technologies and Challenges

3.1 Tension Control Technology: Tension control is one of the core technologies in the winding process. The stability of material tension significantly impacts the flatness and tightness of the winding. To achieve precise tension control, advanced sensors and control systems are required to monitor and adjust the tension in real-time. Additionally, research and optimization of tension control algorithms are necessary to accommodate different materials and process requirements.

3.2 Winding Speed and Stability: Winding speed determines production efficiency, while stability directly affects the quality of the battery cell. Increasing winding speed while ensuring stability is another key technology in the winding process. To achieve this, the dynamic characteristics of the winding process need to be studied, and the structure and motion control algorithms of the winding machine must be optimized to improve its dynamic response and stability.

3.3 Automatic Alignment Correcting: During the winding process, materials may experience deviations and shifts, which can lead to structural and dimensional variations in the battery cell. Therefore, the development and application of automatic alignment correcting technology are crucial for improving the consistency and yield rate of the battery cell. This technology involves multiple fields such as photoelectric detection, image processing, and motion control, requiring comprehensive utilization of relevant theories and techniques for in-depth research.

3.4 Adaptability of New Materials: With the advancement of technology, new electrode materials (such as silicon-based negative electrode materials) and separator materials continue to emerge. These materials exhibit significant differences in physical properties compared to traditional materials, posing new challenges to the winding process. Addressing how to adapt to the characteristics of new materials and optimize winding process parameters is one of the urgent problems to be solved.

3.5 Environmental Protection and Safety: The manufacturing process of lithium batteries involves various organic solvents and other hazardous substances. Therefore, it is crucial to reduce environmental pollution and production safety risks while ensuring the quality and efficiency of the winding process. Future research needs to focus on green manufacturing technologies and environmentally friendly solvent replacement solutions to achieve sustainable development in lithium battery manufacturing.

4. Outlook

With continuous technological advancements and the growing demand in the market, the winding process in lithium battery manufacturing is poised to encounter new opportunities and challenges. In the future, the winding process will evolve towards high efficiency, intelligence, and environmental friendliness. By incorporating advanced technologies such as artificial intelligence and machine learning, intelligent and adaptive control of the winding process can be achieved. Improving production efficiency can be achieved through enhancements in equipment design and optimization of process parameters. Moreover, research and development efforts in environmentally friendly materials and manufacturing technologies will help reduce environmental pollution during production.

5. Conclusion

The winding process in lithium battery manufacturing is a crucial step that directly impacts the performance and value of lithium batteries. To meet the market’s demand for high-performance lithium batteries, it is necessary to conduct in-depth research on the core technologies of the winding process, address challenging issues, and enhance process capabilities and production efficiency. Simultaneously, attention should be paid to environmental protection and safety to promote the sustainable development of the lithium battery industry. Through continuous technological innovation and market expansion, significant progress and development in the winding process of lithium battery manufacturing are anticipated.
